28999,00 AED
The THOK GRAM DREAM ASKOLL frameset is the ideal starting point for cyclists looking to design their perfect e-MTB. Lightweight, robust, and engineered for optimal performance, this frameset with an Askoll motor is ready to accommodate your custom components.(On request)

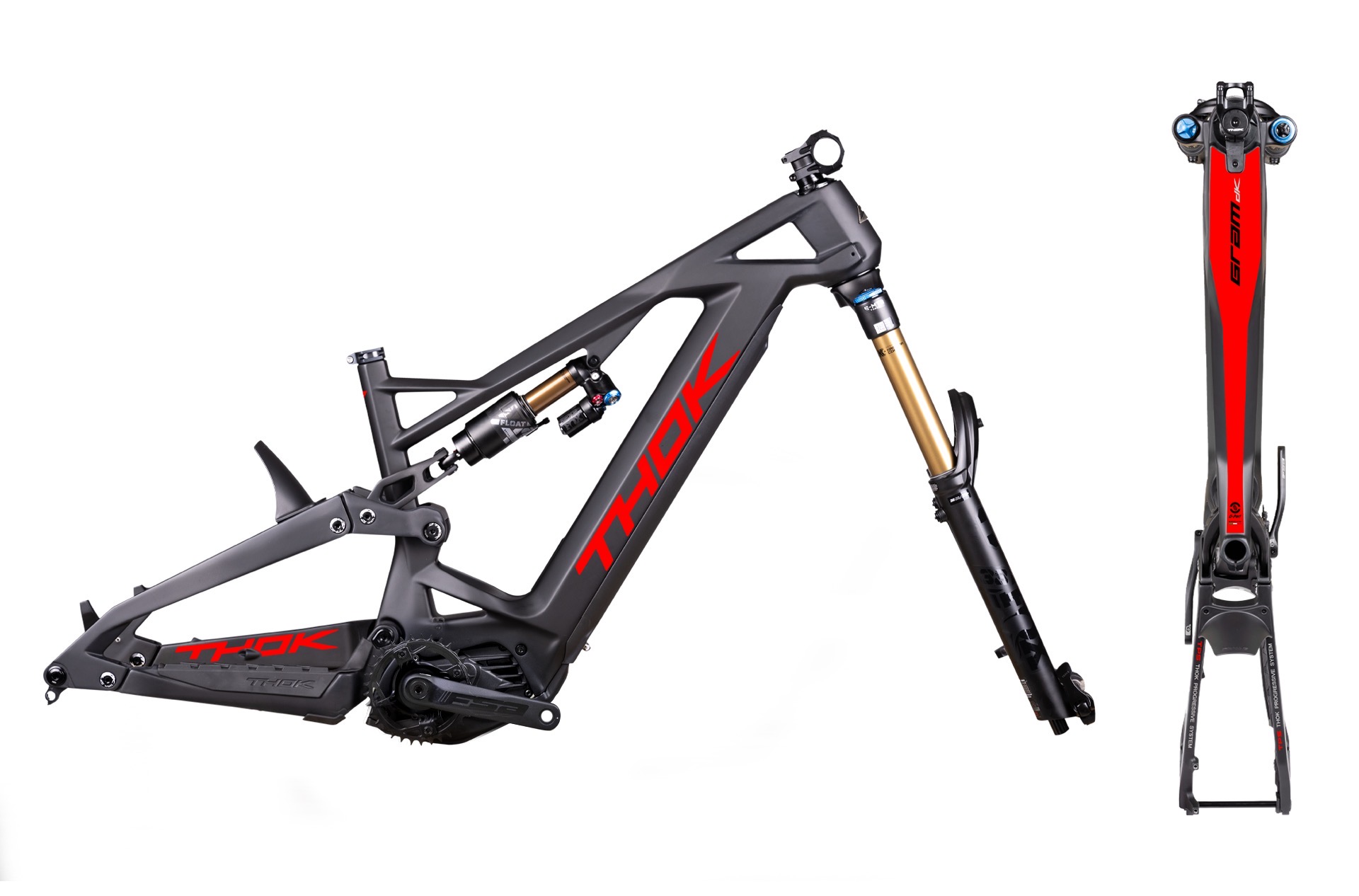

The THOK GRAM DREAM SHIMANO FRAME KIT is the ultimate foundation for creating a high-performance electric mountain bike. Designed by Italian engineers and built with THOK’s proven geometry, this frame kit is with Shimano’s EP801 motor system, ensuring the perfect balance between power, control, and precision.
Whether you’re building a lightweight trail machine or an enduro-ready e-MTB, the GRAM DREAM SHIMANOframe gives you the freedom to craft your ideal setup with uncompromising quality and performance. Explore more in our E-Bikes collection.
| Component | Specification | Notes / Size |
|---|---|---|
| Frame | THOK unidirectional full carbon fiber, tapered headtube 1.8, 29″/27.5″ geometry, integrated downtube battery, UDH hanger technology, enclosed internal cable routing, fully sealed cartridge bearings, 170 mm travel | – |
| Sizes | S, M, L, XL | S: 154–167 cm • M: 168–177 cm • L: 178–184 cm • XL: 185–200 cm |
| Motor & Battery | SHIMANO EP801 (250 W – 85 Nm) • Internal Battery 820 Wh | – |
| Display & Switch Control | SHIMANO SC-EN600 color LCD with remote control SW-EN600 | – |

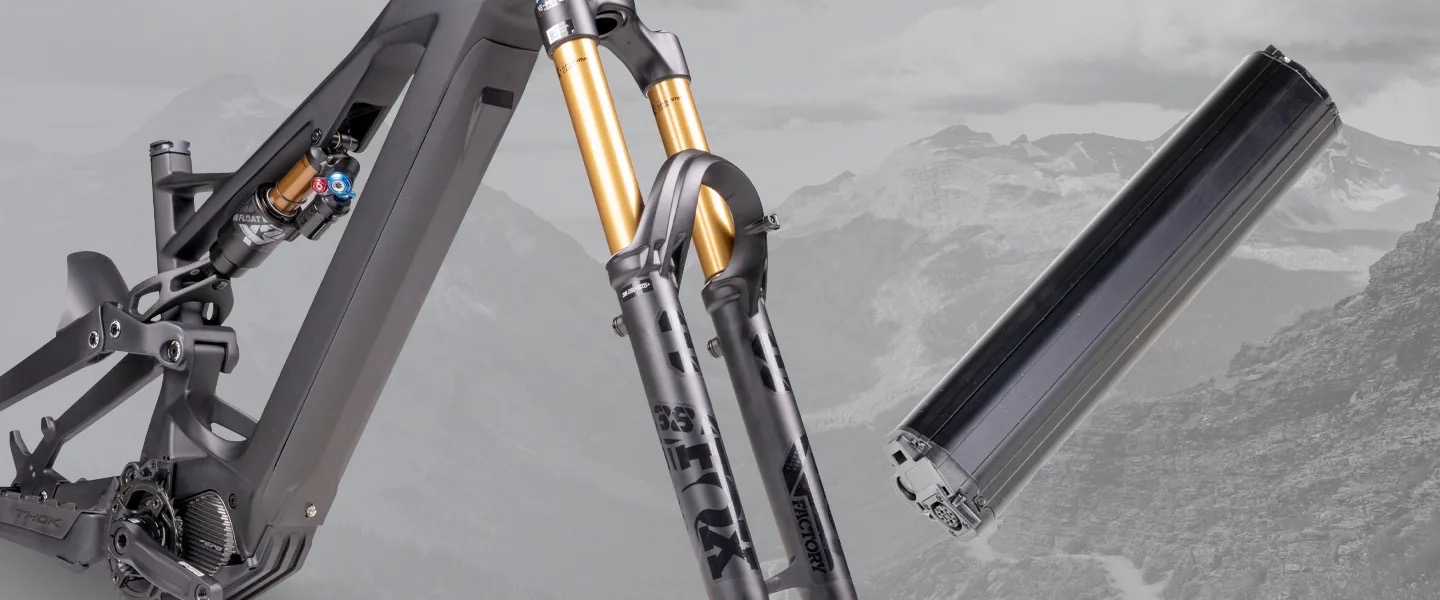

| Fork | FOX 38 Float Factory Kashima, 29″ Boost, GRIP2, 180 mm travel | – |
| Rear Shock | FOX X2 Float Factory Kashima, 2-position adjustable, THOK custom tuned, 230×65 mm | – |
| Chainguide | THOK Chainguide | – |
| Crankset & Chainring | FSA Crankset 165 mm • Chainring 34T | – |
| Headset | FSA tapered 1.8 with THOK stopper | – |

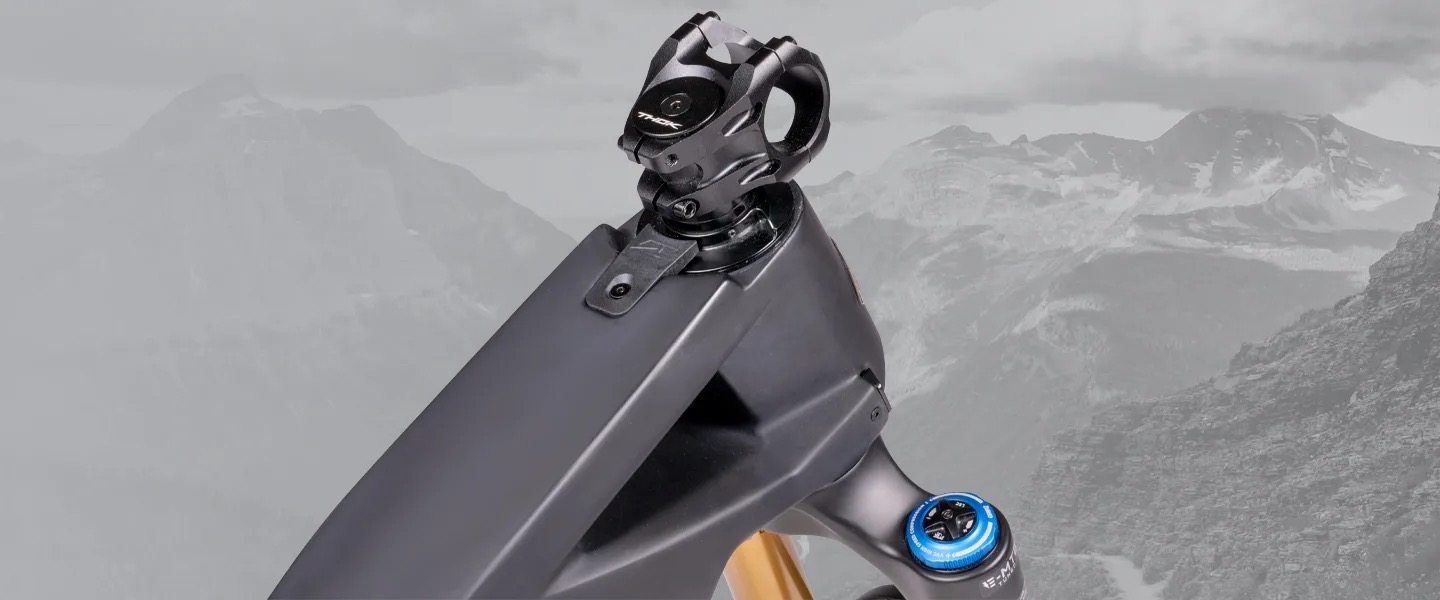

| Stem | THOK Alloy, front clamp oversize 35 mm, extension 35 mm | – |
| Grips | THOK Lock-On, regular size | – |
| Seat Clamp | THOK custom CNC Alloy 34.9 mm | – |
| Saddle | THOK Fit with hollow Cr.Mo rail | – |
| Weight | 11 kg | (Without pedals) |
| Additional Kit | Dream BOX – Libellum THOK | – |
The GRAM DREAM SHIMANO frame delivers THOK’s signature progressive geometry, giving you ultimate confidence on technical trails. Its low center of gravity and balanced geometry offer maximum stability on descents while maintaining efficient pedaling on climbs.
This frame is engineered for those who demand performance, precision, and custom freedom in every ride.

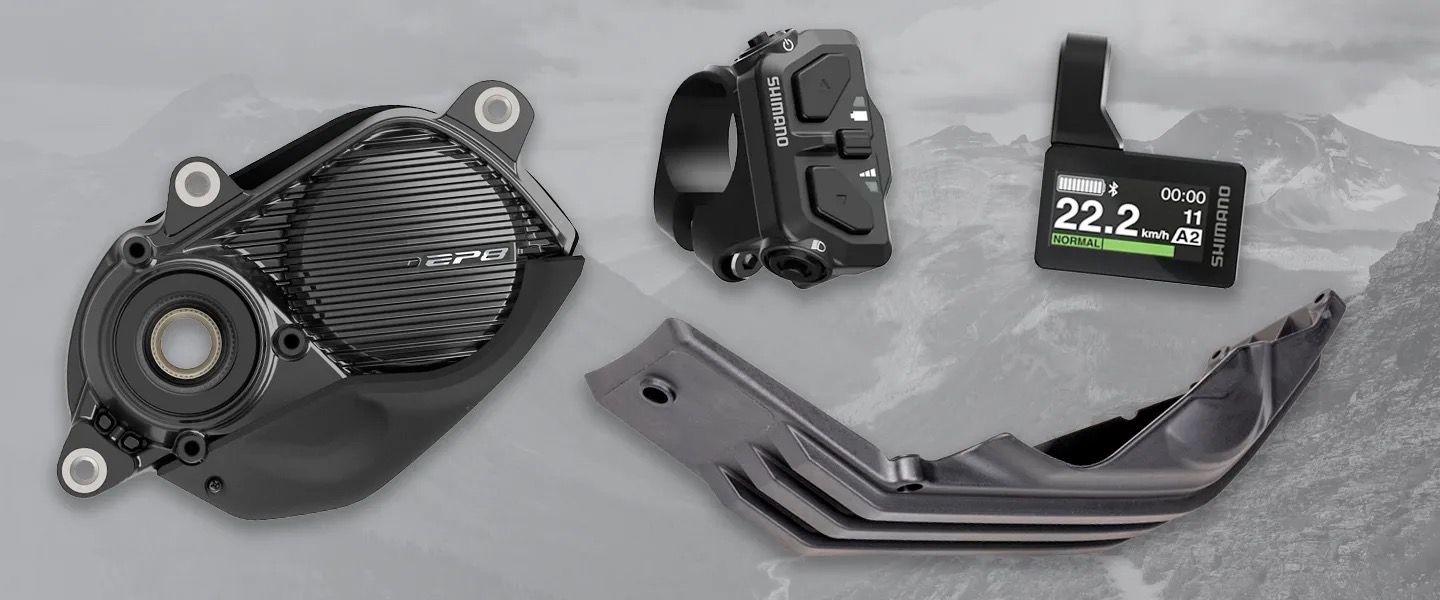

Built around the Shimano EP801 drive unit, this frame guarantees seamless integration and excellent weight distribution. The result is natural power delivery, responsive handling, and exceptional reliability — exactly what demanding e-MTB riders expect.
Custom-Build Ready: Create your own dream e-MTB with premium components.
Optimized Geometry: Perfect blend of stability, control, and climbing efficiency.
Shimano Motor: SHIMANO EP801 (250 W – 85 Nm) • Internal Battery 820 Wh
Lightweight Strength: THOK unidirectional full carbon fiber.
🚚 Fast & secure UAE delivery
🛠️ Expert support e-MTB
🤝 Official THOK warranty
The THOK GRAM DREAM SHIMANO FRAME KIT is your blank canvas for creating the ultimate e-MTB experience — powerful, sleek, and 100% yours.
Build your bike your way with WINRIDER, the online store trusted by riders who demand performance.
| Size | M, L, XL |
|---|---|
| Color Style 1 | WHITE, BLACK, RED, BLUE, YELLOW, CHROMED, GOLD, HOLOGRAPHIC |
| Cyclist Height (cm) | Inseam (cm) | Bike Size (inches) | Bike Size (cm) | Bike Frame Size |
|---|---|---|---|---|
| 152–162 | 68–74 | 14 | 38 | XS |
| 163–168 | 75–77 | 16 | 41 | S |
| 169–174 | 78–81 | 17.5–18.5 | 44–45 | M |
| 175–178 | 82–83 | 19.5–20 | 46–48 | M/L |
| 179–182 | 84–86 | 20.5 | 49–50 | L |
| 183–188 | 87–90 | 21 | 52 | L/XL |
| 189–200 | 91–94 | 22 | 55 | XL |
