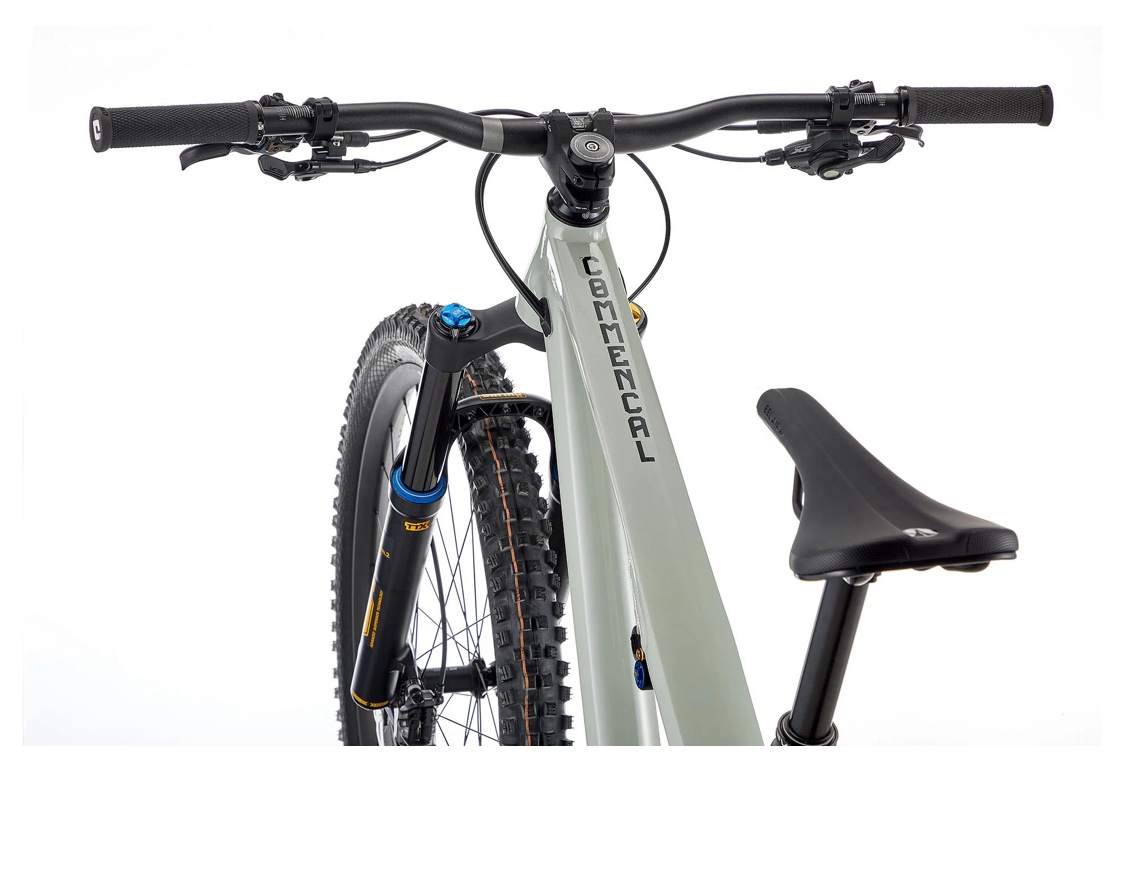

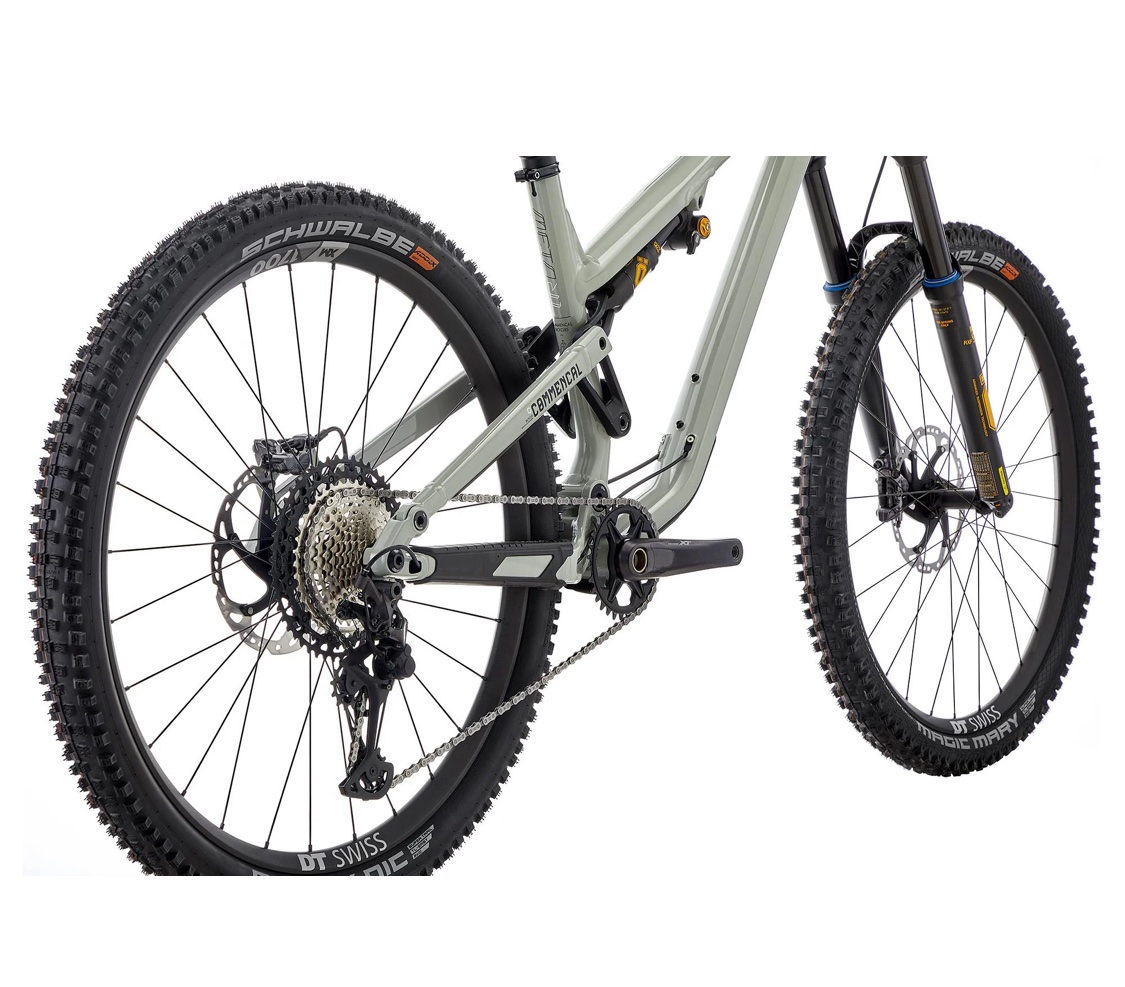

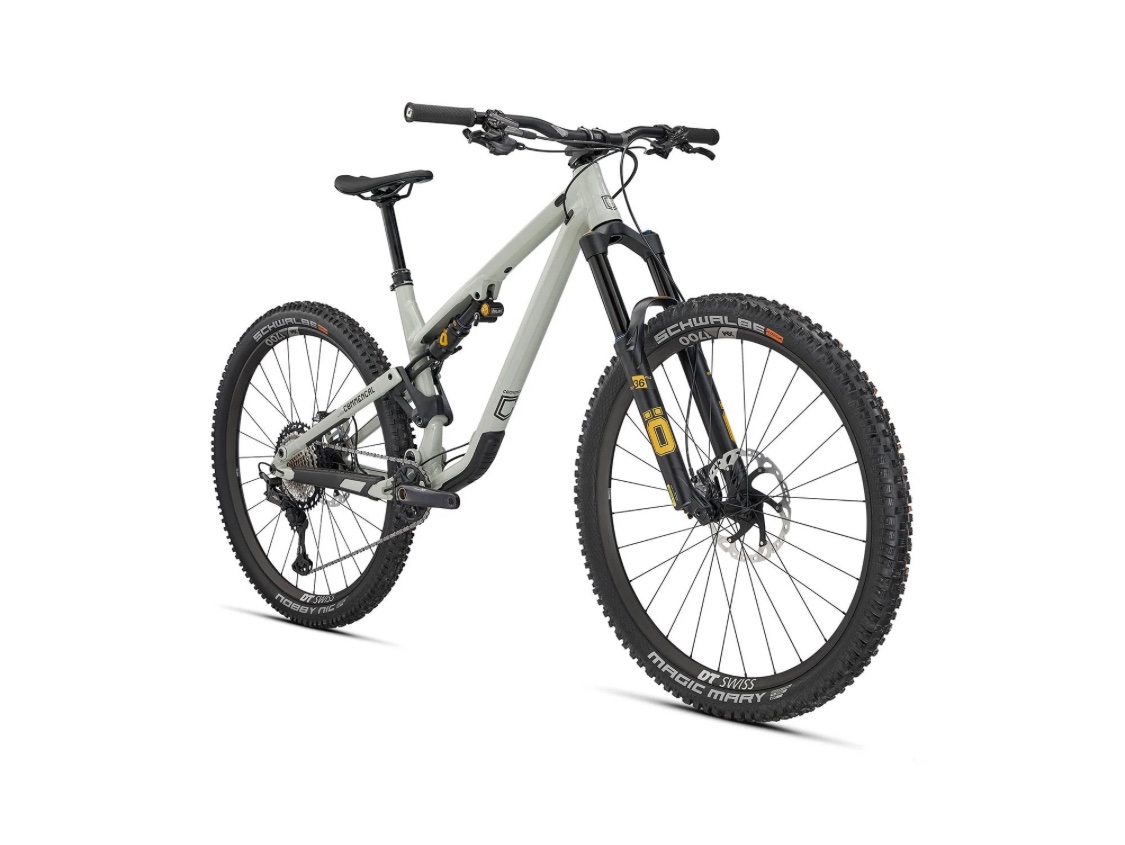

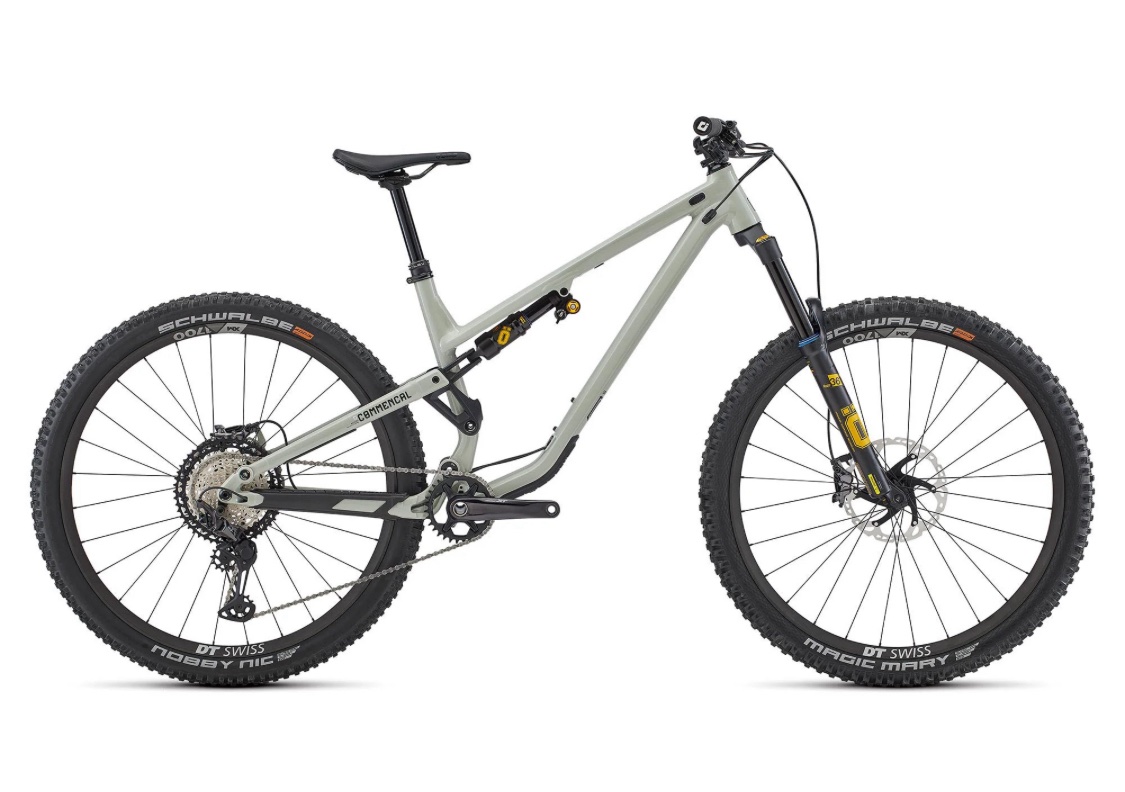

COMMENCAL META TR V4 OHLINS EDITION ASH GREY

Ride harder with the COMMENCAL META TR V4 OHLINS EDITION ASH GREY – top-tier ÖHLINS suspension, 29" wheels & trail-tuned geometry

Master Precision. Trail Dominance. Built to Win.
WINRIDER – Your Ultimate Online Bike Shop. Explore more in our Mountain Bikes collection.

🏆 Unrivaled Trail Performance with Swedish Precision COMMENCAL META TR V4 OHLINS EDITION ASH GREY

Born from a partnership between COMMENCAL and the legendary suspension masters at ÖHLINS, the META TR V4 ÖHLINS Edition is not just a trail bike—it's a statement. With an uncompromising build and razor-sharp engineering, this machine is purpose-built for aggressive riders who demand the best in traction, control, and durability on every ride.

Whether you're hammering flow trails or navigating steep, technical descents, the META TR V4 delivers explosive efficiency and downhill confidence with the finesse of a pro-level setup.

🚀 Key Features

• Frame: META TR V4 6066 T6 aluminum – Ash Grey finish

• Suspension:

  • Fork: ÖHLINS RXF36 m.2 Air 150mm – Unrivaled small bump compliance

  • Shock: ÖHLINS TTX1 Air 140mm – Enduro-tuned for perfect traction and big-hit support

• Wheels: 29” tubeless-ready – Fast rolling and rock-solid on impact

• Drivetrain: Shimano XT 12-speed – Wide gear range for all terrains

• Brakes: Shimano XT  – Reliable stopping power in any condition

• Dropper Post: KS Ragei – Tidy, efficient, and ready to descend

⚙️ Built to Shred, Tuned to Win

With a perfectly balanced 140mm rear / 150mm front travel, the META TR V4 thrives in the sweet spot between trail bike agility and enduro bike capability. Thanks to ÖHLINS' legendary suspension damping and tunability, you'll experience more grip, more stability, and more confidence on every ride.

Pair that with COMMENCAL’s aggressive geometry and you’ve got a rig that climbs efficiently and descends like a beast. Ash Grey isn't just a color—it's a statement of raw power and sleek performance.

✅ Why Choose the META TR V4 ÖHLINS Edition from WINRIDER?

• Handpicked for serious riders seeking premium trail performance

• Delivered ready to ride with expert pre-assembly and fast shipping

• Backed by WINRIDER's team of MTB specialists and dedicated customer service

• Competitive pricing on top-tier trail bikes – no compromises

🔗 Explore More from WINRIDER

Looking for more enduro and trail domination? Don’t miss:

• SUNN KERN S1

• CUBE STEREO ONE55

• SUNN KERN FINEST

📦 Ready to Conquer Trails?

The COMMENCAL META TR V4 ÖHLINS Edition Ash Grey is built for riders who don’t compromise. If you're chasing KOMs, flow, or pure adrenaline, this is the machine that’ll elevate your ride.

➡️ Order now at WINRIDER – Where Performance Meets Passion.

• FRAME

  META TR, 140 mm travel
  29'', Alloy 6066, triple butted tubes, T4, T6. Enduro bearings

• SHOCK

  OHLINS TTX1 Air
  210 x 55 mm, climb mode, Adjustable HSC (High-Speed Compression), LSC (Low-Speed Compression) and Rebound damping

• FORK

  OHLINS RXF36 m.2 Air, 150 mm travel
  29", TTX 18 damper, Ramp Up chamber, LSC, HSC, rebound, climb mode, Boost (15 x 110 mm), 44 mm offset

• HEADSET

  ACROS ZS44 / ZS56
  Alloy cups, sealed bearings

• STEM

  RIDE ALPHA Freeride 40
  40 mm extension, 31,8 mm

• HANDLEBAR

  RIDE ALPHA R20 760 on S - RIDE ALPHA R27 780 on M / L - RIDE ALPHA R27 800 on XL
  31.8 mm, 760 mm width, 20 mm rise, Alloy 6061 on S - 31.8 mm, 780 mm width, 27 mm rise, Alloy 6061 on M / L - 31.8 mm, 800 mm width, 27 mm rise, Alloy 6061 on XL

• GRIPS

  ODI Elite Motion
  Soft pro compound, single clamp, black

• BRAKES

  SHIMANO XT, 4 pistons, I-Spec EV compatible
  Rotors: Delivered with Shimano SM-RT86 or Galfer Disc Wave 203 mm, 6-bolt discs.

• SHIFTERS

  SHIMANO XT
  12s

• REAR DERAILLEUR

  SHIMANO XT
  12s



• BOTTOM BRACKET

  SHIMANO BBMT800
  Pressfit

• CRANKSET

  SHIMANO XT, 170 mm crank arms, Boost
  Chainring: SHIMANO XT, 32t, Dynamic Chain Engagement + Technology

• CHAIN

  SHIMANO XT
  12s

• CASSETTE

  SHIMANO XT
  12s, 10-51t

• RIMS

  DT SWISS XM 1700
  29'', 28h, 30mm inner width

• HUBS

  Rear: DT SWISS 350 - Front: DT SWISS 350
  Rear: 28h, sealed bearings, 12 x 148 mm, Micro Spline, 36t ratchet, black - Front: 28h, sealed bearings, 15 x 110 mm, black

• SPOKES/NIPPLES

  DT SWISS Competition
  Straightpull, 2.0-1.8-2.0mm, double butted, stainless, with Nylok, black

• TYRES

  Rear: SCHWALBE Nobby Nic - Front: SCHWALBE Magic Mary
  Rear: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy - Front: 29" x 2.4", Super Trail, Addix Soft, Tubeless Easy

• SEAT POST

  KS Lev Integra
  34.9 mm, travel: 125 mm on S, 150 mm on M, 175 mm on L, 200 mm on XL, SouthPaw alloy remote

• SADDLE

  SDG Bel Air V3 Atmos
  140 mm width, Lux-Alloy Rails

• WEIGHT

  15 kg / 33.06 lb
  Average weight for S size, without pedals. Weight may differ slightly due to manufacturing tolerances.
