Discover the ultimate bike built for performance, versatility, and endurance — featuring the legendary ENVE FRAY ASH carbon this complete bike delivers the power, precision, and durability you need to conquer every mile.
Discover the ENVE FRAY ASH, a race-inspired all-road bike designed for Dubai’s dynamic landscapes. Engineered for performance and endurance, it features a carbon frame, versatile tire clearance, and integrated storage. Explore the ENVE FRAY ASH at Winrider.

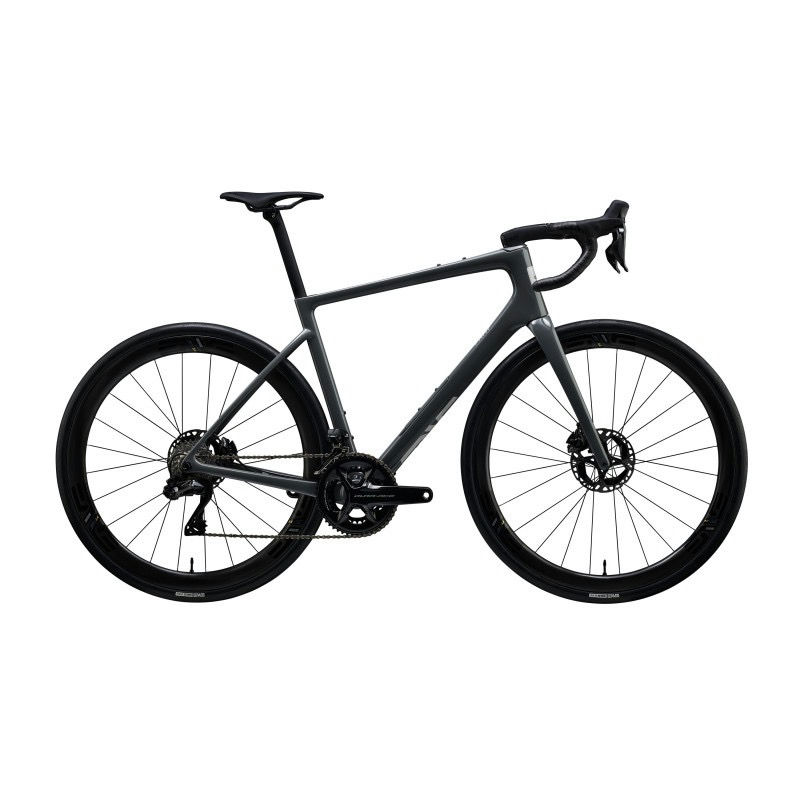

ENVE FRAY ASH – Ride Anywhere, Fast and Free
Push Boundaries with the ENVE FRAY ASH
Designed for Dubai’s dynamic landscapes and the UAE’s demanding cyclists, the ENVE FRAY ASH is a race-inspired all-road bike that lets you ride anywhere, fast and free.
What Makes It Stand Out
🔥 Carbon Frame
Engineered for both performance and endurance.
🔥 Tire Clearance
Optimized for 31–35mm tires, with clearance up to 40mm.
🔥 Integrated Storage
In-frame Cargo Bay system for tool and nutrition storage.

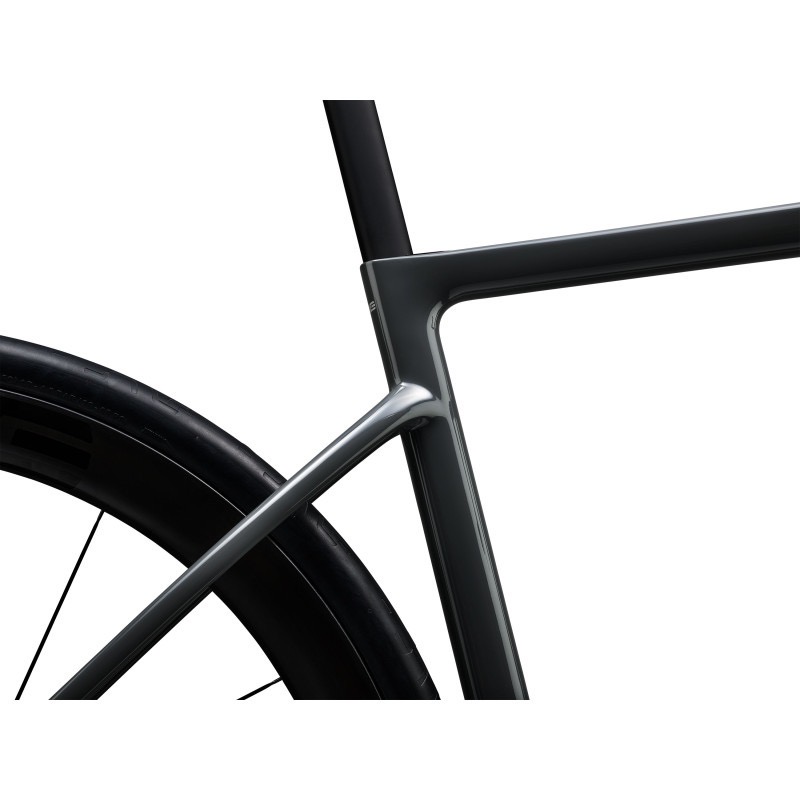

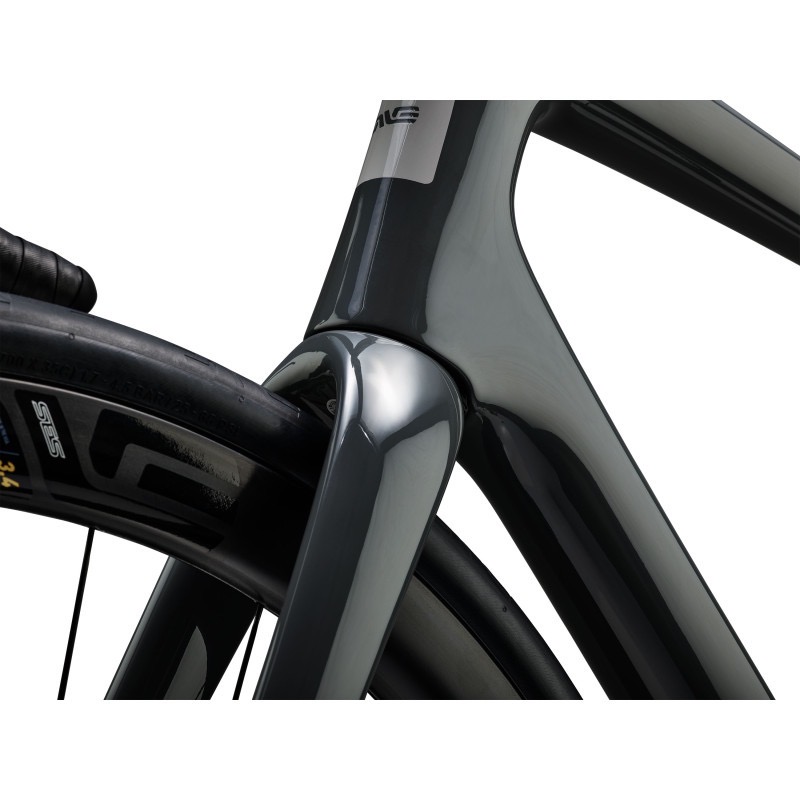

A Carbon Frame That Speeds Up and Smooths Out
Built for responsiveness and comfort, the ENVE FRAY ASH’s carbon monocoque frame absorbs vibration and boosts pedaling efficiency. Whether you're slicing through Dubai's traffic or chasing KOMs, it performs with ease and grace.

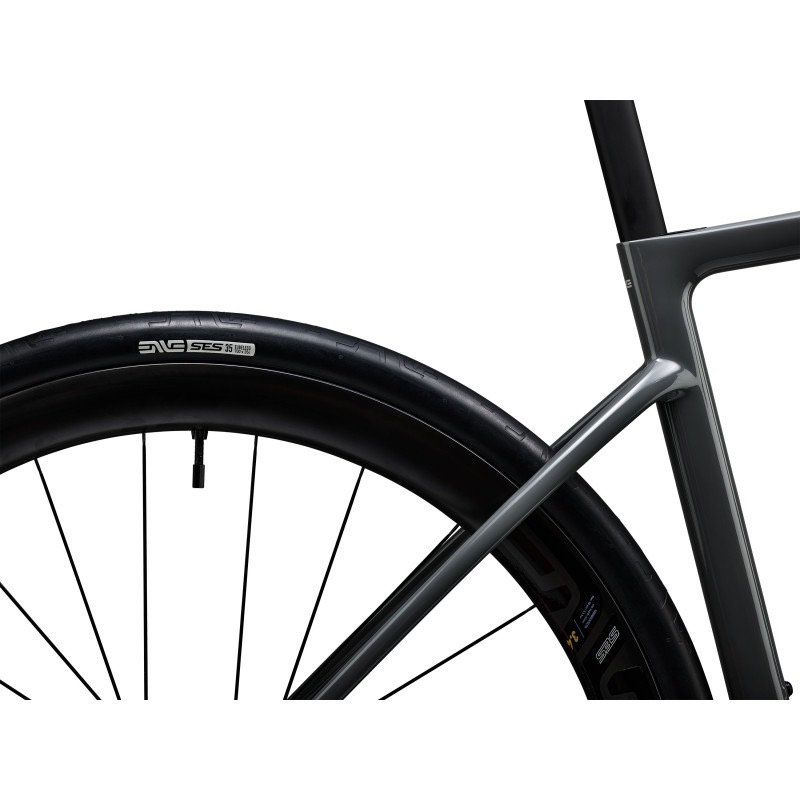

Tire Clearance That Changes the Game
Ride 31 to 35mm tires as default, or take it further with up to 40mm for gravel-ready versatility. The geometry remains fast and stable across all road types, from palm-lined boulevards to dusty stretches in the outskirts.

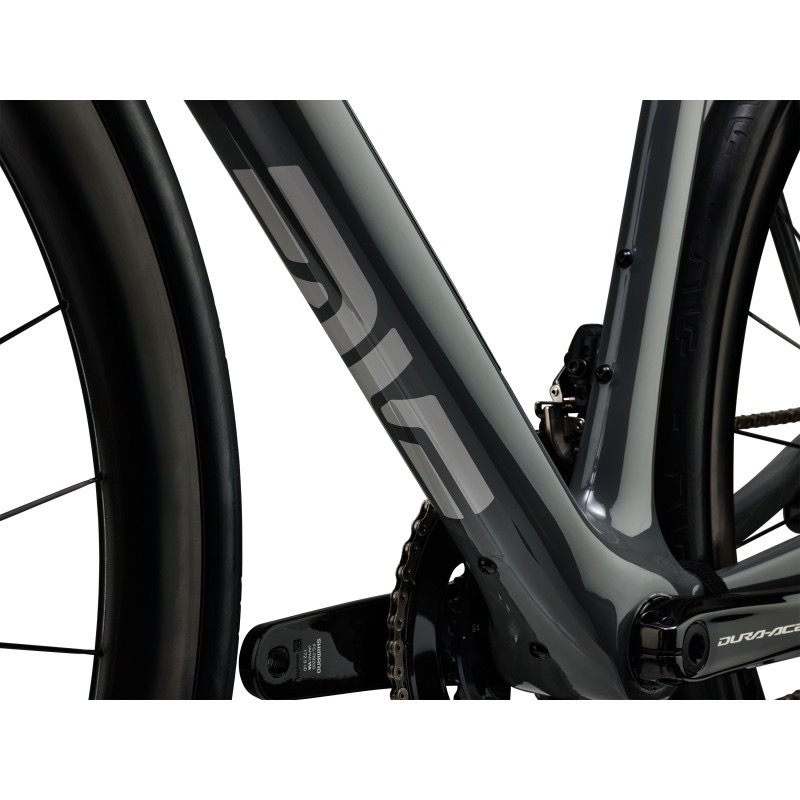

Storage Inside the Frame – Yes, Really
ENVE’s Cargo Bay isn’t just a gimmick. Built right into the downtube, it stores tools, gels, or a spare tube—out of sight but ready when you need it. No bulky bags. Just smart design.
Aero Where It Counts

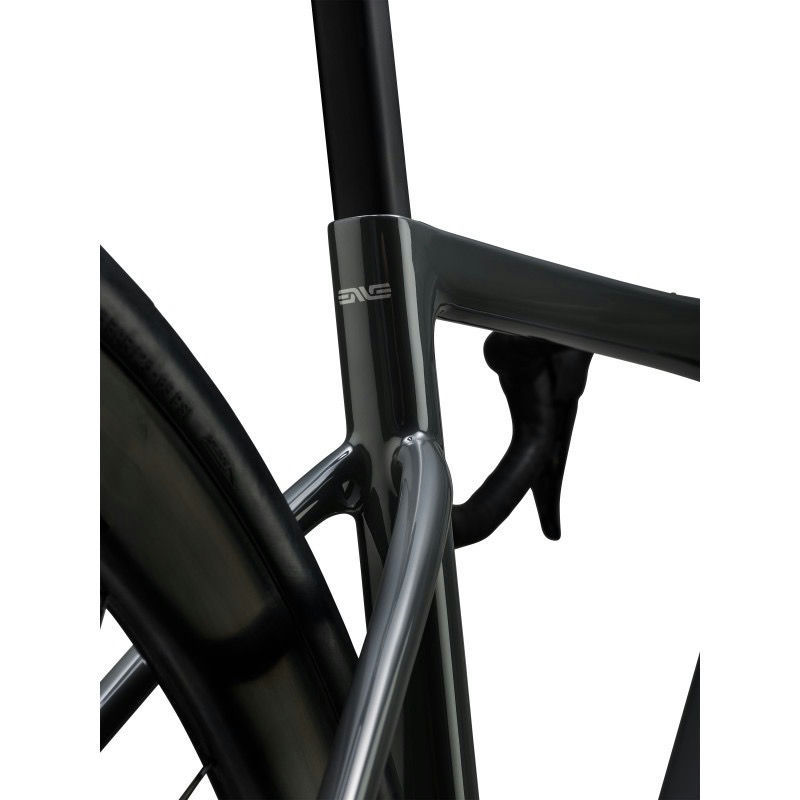

From the seatpost’s Kamm-tail profile to clean cable routing, this bike cuts through wind. Perfect for UAE’s flat expanses where every second matters.
More Road Bikes You’ll Want to Check Out
- SUNN ASPHALT S1 – Built for Everyday Speed
- 3T EXPLORO ULTRA RIVAL 1X11 GRAPHITE – Versatility Meets Power
- CUBE LITENING AERO C:68X SLT TEAMLINE – Full Aero Excellence
Product Detail
- Real-World Fast™ aero optimization
- Geometry optimized for 31mm - 35mm tires
- Tire clearance fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
- ENVE Cargo Bay integrated downtube storage allows in-frame storage solution

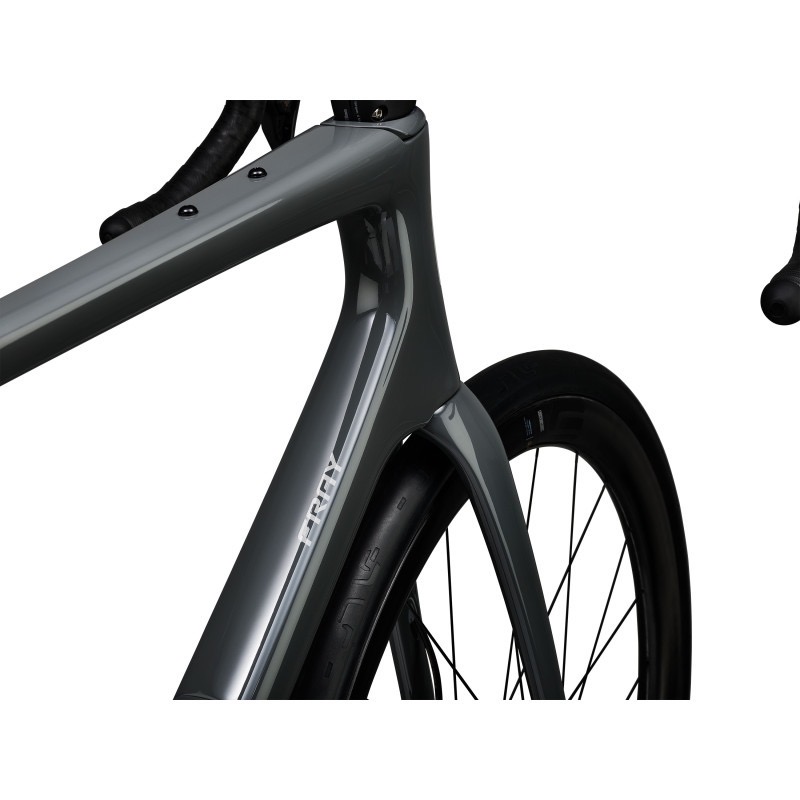

- Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed for big adventure rides
- Aero tube shapes & design that complements SES rim shapes
- Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
- Frame Weight: 900g (Size 56cm Painted, No Hardware)
Frame Specs
| Specification | Details |
|---|---|
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible |
| Target Application | All Road / Endurance / Mixed Surface / Sportif / Fondo |
| Sizes (cm) | 47, 50, 52, 54, 56, 58, 60 |
| Fork Rake | 55, 51, 47, 43 |
| Frame Size/Fork Rake | 47cm/55, 50cm/55, 52cm/51, 54cm/51, 56cm/47, 58cm/47, 60cm/43 |
| Frame Weight | 900g +/- 2% (Size 56, Painted, No Hardware) |

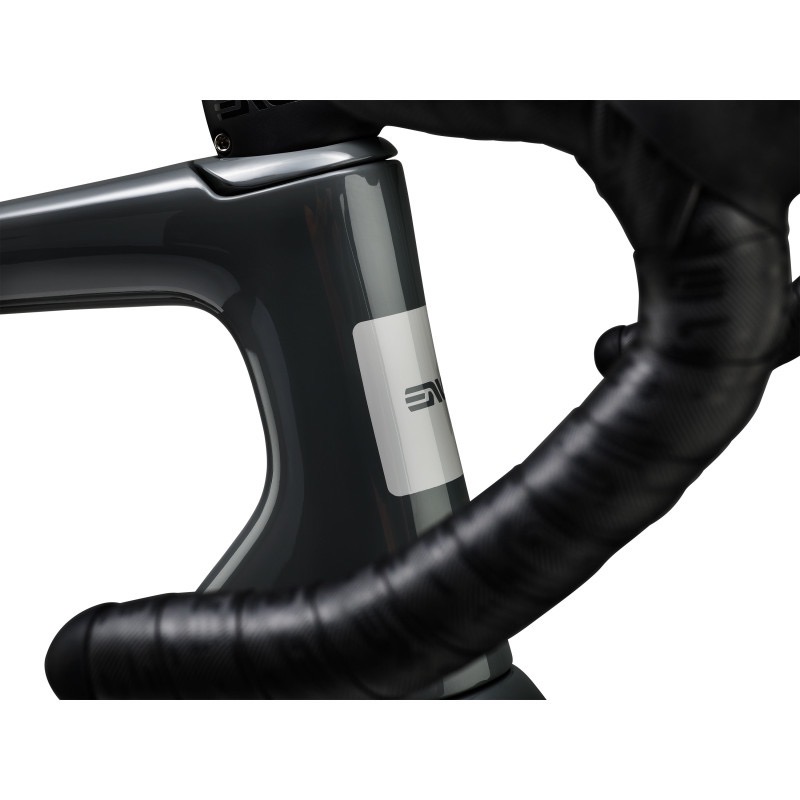

| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5” IS52 Upper and Lower |
| Seat Post Diameter | ENVE Aero |

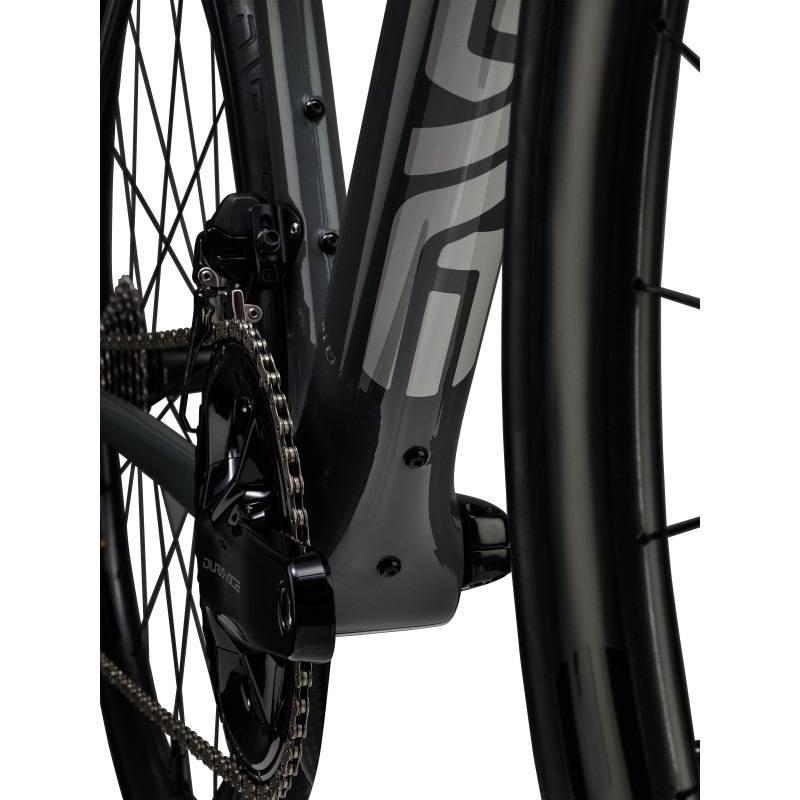

| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 27mm |
| Optimal Tire Size | 31mm - 35mm |
| Maximum Listed Tire Clearance 1x | 40mm |
| Maximum Listed Tire Clearance 2x | 38mm |
| In-Frame Storage | Yes (2 Storage Bags included - 18.22 cubic cm each) |
| Frame Routing | Internal |
| Waterbottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Compatible | Yes |
| Wheel Size | 700c |
